GENEL BİLGİLER
| Production Capacity |
100 m³/h |
| Sizes in Transport Position |
16.5 (L) x 2.8 (W) x 4.3 (H) meters |
| Weight |
28 Tonnes |
| Total Motor Power |
125 kW |
| Required Electric Generator |
200 kVA |
| Mixer Options |
Pan - Single Shaft - Planetary |
| Required area to operate |
300 m² |
High-Capacity Mobile Ready Mix Concrete Plant for On-Site Production
The 100 m³/hour mobile concrete batching plant is designed for high-volume concrete production directly at the construction site. This mobile ready mix plant combines high performance, mobility, and advanced automation, making it an ideal solution for large-scale infrastructure, industrial, and commercial construction projects.
WHAT IS A 100 M³/H MOBILE CONCRETE BATCHING PLANT?
A 100 m³/h mobile batching plant is a fully integrated concrete production system mounted on a mobile or semi-mobile chassis. It includes aggregate batching units, cement silos, water and chemical admixture dosing systems, a high-capacity mixer, and PLC-based automation. The system allows fast installation and easy relocation between job sites.
TECHNICAL DESIGN & KEY FEATURES
• High-Efficiency Twin Shaft Mixer
The 100 m³/h capacity is typically achieved using a twin shaft concrete mixer with optimized batch cycles, ensuring fast, homogeneous mixing suitable for high-strength concrete grades.
• Multi-Bin Aggregate Batching System
Multiple aggregate bins allow accurate proportioning of different aggregate sizes, providing flexibility in concrete mix designs and stable production quality.
• Cement Storage & Feeding
Cement is stored in silos and transferred via screw conveyors with precise weighing, ensuring dust-controlled and accurate dosing.
• Water & Admixture Dosing
Automatic water and chemical dosing systems guarantee consistent workability, strength, and setting time for every concrete batch.
• PLC Automation & Control Panel
Advanced PLC automation enables fully automatic operation, recipe management, production reporting, fault diagnostics, and optional remote access.
PRODUCTION CAPACITY & PERFORMANCE
With a nominal output of up to 100 m³ per hour, this mobile concrete batching plant is suitable for continuous concrete production in demanding projects. The system balances high output with mobility, offering a strong alternative to stationary concrete plants.
ADVANTAGES OF A 100 M³/H MOBILE CONCRETE PLANT
• Fast installation and commissioning
• Easy transportation between job sites
• Lower civil foundation costs
• On-site concrete production reduces logistics costs
• Consistent concrete quality and repeatability
APPLICATION AREAS
• Infrastructure projects (roads, bridges, highways)
• High-rise residential and commercial buildings
• Industrial plants and heavy foundations
• Remote and temporary construction sites
• Mass concrete pours
CONCRETE QUALITY CONTROL
Accurate weighing systems, high-performance mixing technology, and PLC-controlled automation ensure uniform concrete quality, reduced material waste, and stable production results.

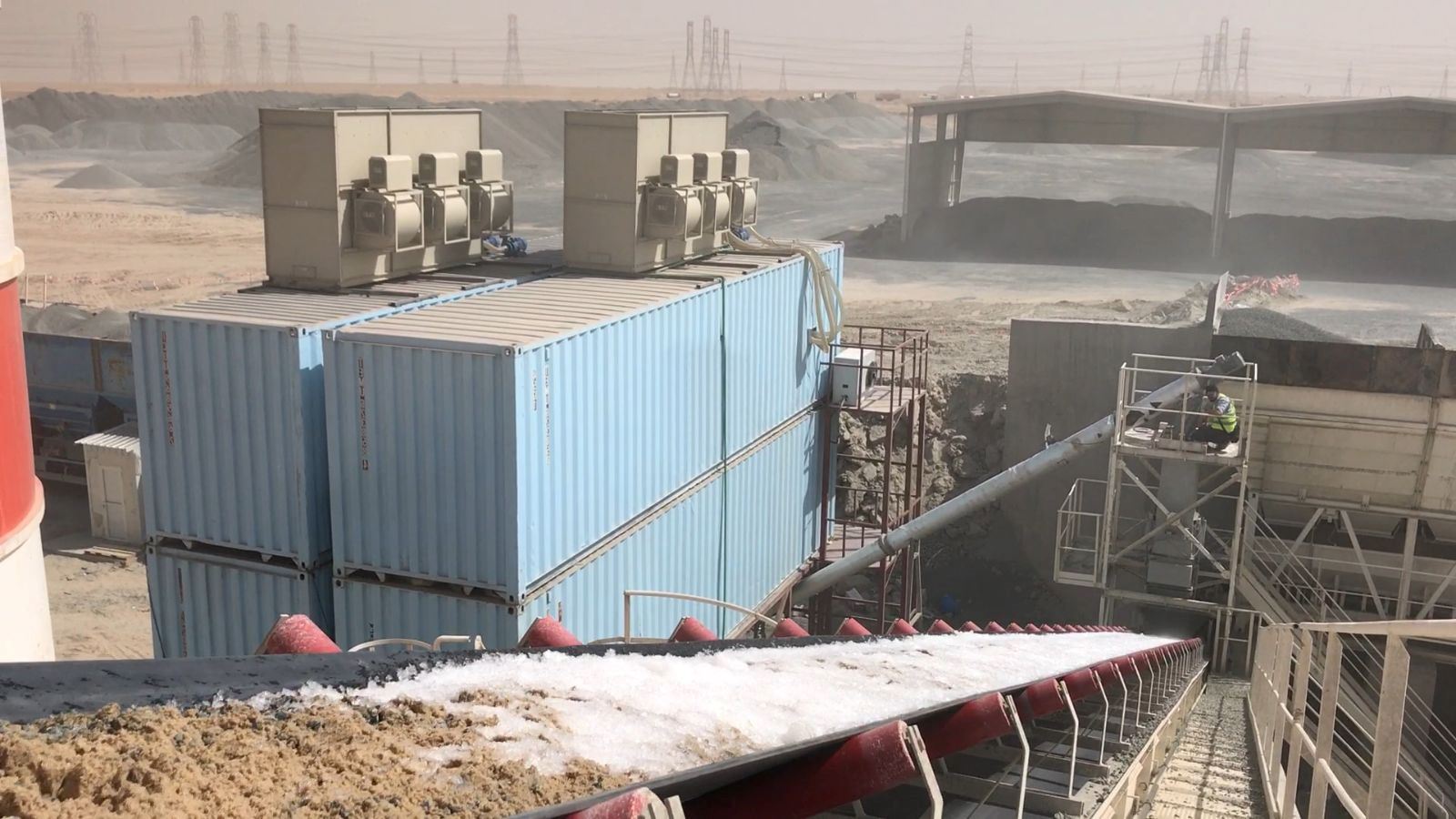

INTEGRATION WITH CONCRETE COOLING & ICE PLANT SYSTEMS
In hot climate regions, concrete temperature control is critical. The 100 m³/h mobile batching plant can be integrated with concrete cooling solutions such as chilled water systems or flake ice plants. Ice dosing during mixing helps reduce concrete temperature, control setting time, and minimize thermal cracking risk.
